Model-
H610M-E DDR4
CPU Socket-
LGA 1700
CPU Support-
14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Memory Support-
2 DIMMs, Dual Channel DDR4-3200MHz (MAX)
Storage-
1x M.2 Gen3 x4 slot
4x SATA 6Gb/s ports
Graphics Interface-
1x PCIe 4.0 x16 slot
Display Interface-
Support 4K@60Hz as specified in HDMI 2.0b
VGA – Requires Processor Graphics
Expansion Slots-
1x PCIe x16 slot (From CPU)
-Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
-Supports PCIe 3.0 x1

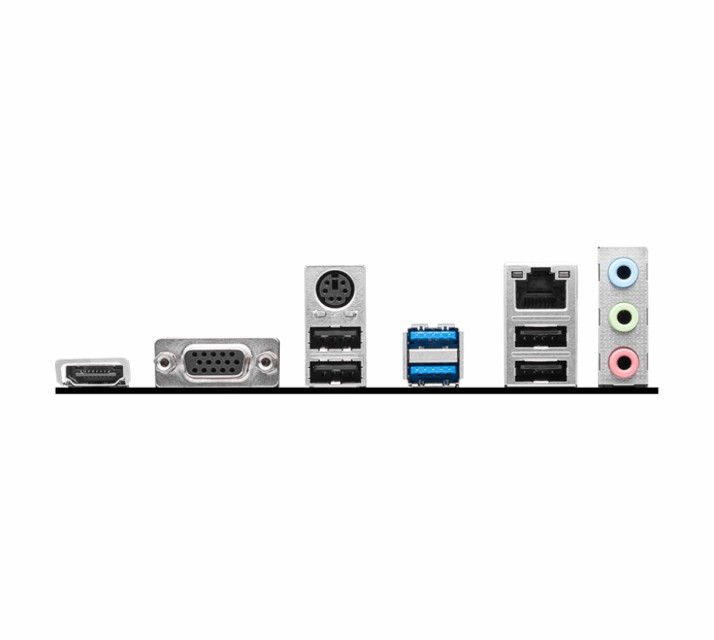

Back Panel-
1 x HDMI 1.4 Port
1 x VGA Port
1 x PS2 Port (Kb/Mouse)
4 x USB 3.2 Gen 1 5Gbps(4 Type-A)
2 x USB 2.0
1 x LAN (Realtek RTL8111H 1Gbps)
3 x Audio Jack, HD Audio with Audio Boost
I/O Internal Board-
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.2 Gen 1 5Gbps connector
-supports additional 2xUSB 3.2 1 5Gbps ports
2 x USB 2.0 connector (supports 4xUSB 2.0 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Clear CMOS jumper
1 x TPM module connector
Dimensions-
mATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Warranty-
3 Years Manyfacturer Limited
